Capabilities (DRAFT)

Heavy Guage Stamping

Working with carbon steel, high strength, and stainless steel, Armor Metalstamp. provides heavy gauge stamping for a wide range of industries.

Our facility features 43 presses with up to a 1500 ton press rating, and manufactures metal parts with materials ranging up to .625″ in thickness. Armor Metalstamp specializes in progressive and multi-operational dies to accommodate your heavy gauge production needs. With a 45-year history of providing heavy gauge stampings, we are a leader in this metal fabrication process.

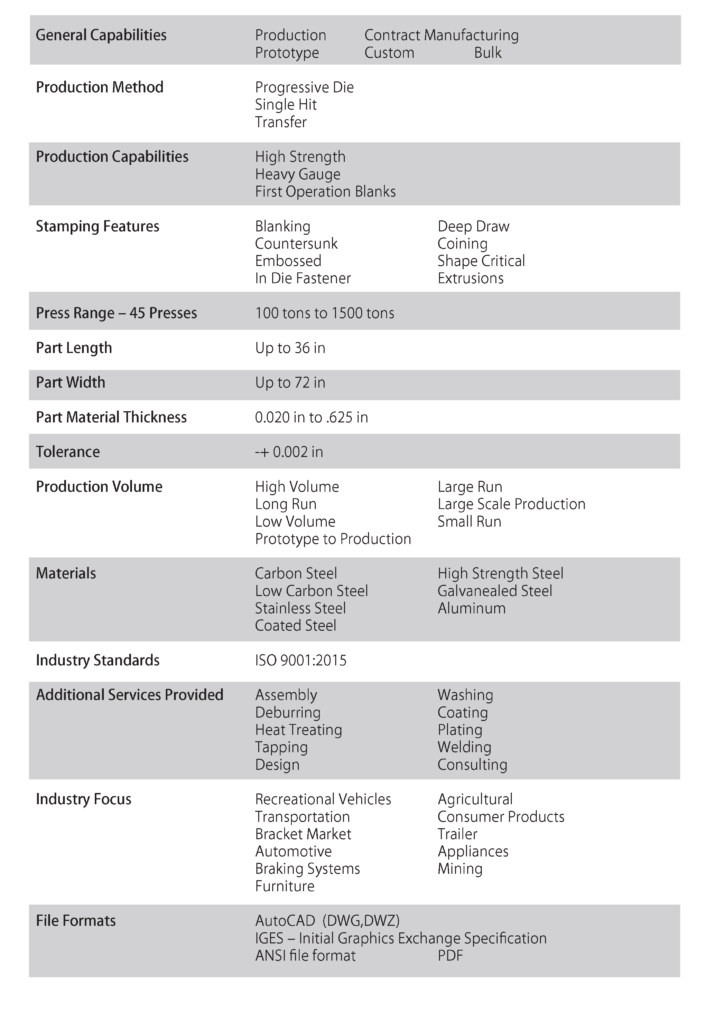

Heavy Gauge stamping midwest

General Capabilities
Production                                                 Contract Manufacturing
Prototype                                                   Custom
Bulk

Production Method
Progressive Die                                         Single Hit
Transfer

Production Capabilities
High Strength                                            Heavy Gauge
First Operation Blanks

Stamping Features
Blanking                                                      Deep Draw
Countersunk                                              Coining
Embossed                                                  Shape Critical
In Die Fastener                                          Extrusions

Press Range – 45 Presses
100 tons to 1500 tons

Part Length Up to 36 in

Part Width Up to 72 in

Part Material Thickness 0.020 in to .625 in

Tolerance -+ 0.002 in

Production Volume
High Volume                                            Large Run
Long Run                                                  Large Scale Production
Low Volume                                            Small Run
Prototype to Production

Materials
Carbon Steel                                           High Strength Steel
Low Carbon Steel                                  Galvanealed Steel
Stainless Steel                                       Aluminum
Coated Steel

Industry Standards ISO 9001:2015

Additional Services Provided
Assembly                                                Washing
Deburring                                                Coating
Heat Treating                                         Plating
Tapping                                                   Welding
Design                                                    Consulting

Industry Focus
Recreational Vehicles                         Agricultural
Transportation                                     Consumer Products
Bracket Market                                    Trailer
Automotive                                           Appliances
Braking Systems                                 Mining
Furniture

File Formats
AutoCAD (DWG,DWZ)
IGES – Initial Graphics Exchange Specification
ANSI file format
PD

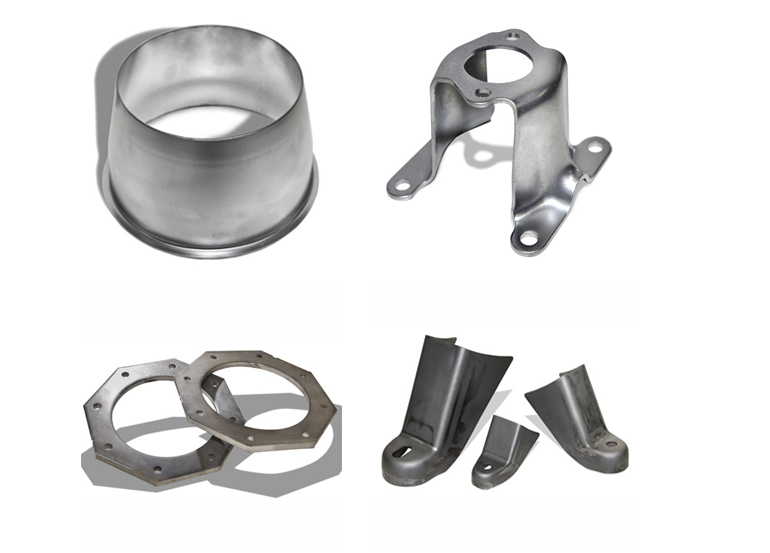

Custom Metal Stamping

Armor Metalstamp. specializes in the supply of world class quality and cost effective metal stamped parts to a wide variety of industries. Featuring over 43 stamping presses, we are well equipped to provide custom stampings for all your production needs. Utilizing single hit dies, progressive dies and transfer dies; Armor Metalstamp produces stampings ranging from heavy gauge to thin gauge materials. Many types of materials are stamped including high strengths, pre-coated and alloy grades.

Our stamping presses provide 100 – 1500 tons of pressure and are equiped to process parts measuring up to 36” in length and up to 72” in width. Part material thickness can range from 0.020” to .625” with maintaining tolerances of 0.002”.

Custom metal stamping Midwest
Armor Metalstamp specifications

Precision Blanking Services

Armor Metalstamp is well-equipped to handle your blanking needs. We blank metal circles up to 36” in diameter and configured blanks within the production parameters listed below. We can accommodate material ranging from 0.020” to .625” in thickness. From low volume runs to large scale production needs, Armor Metalstamp can manufacture first operation blanks for your plant assisted production

Midwest stamping services Armor Metalstamp

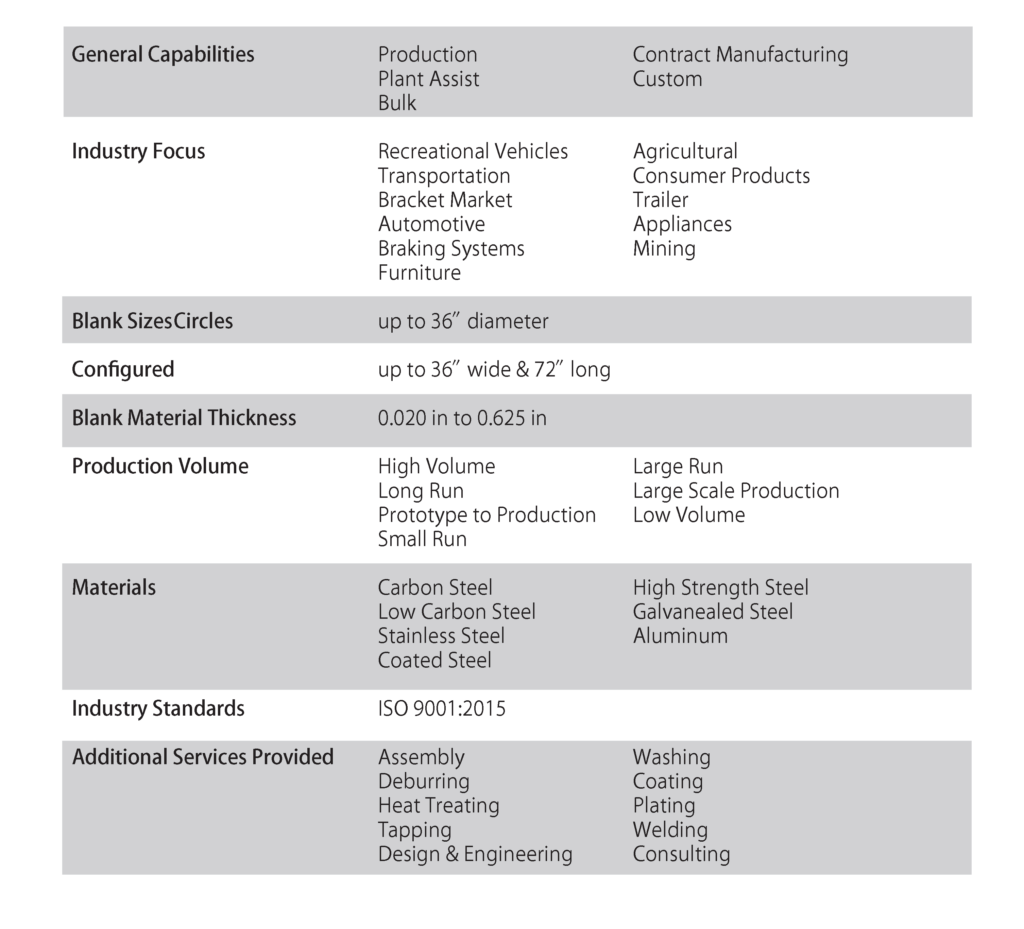

Precision Blanking Armor Metalstamp
engineered metal stamping parts

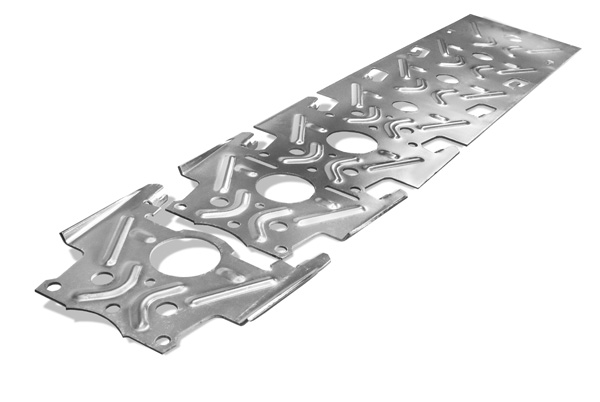

Metal stamping parts

Plant Assist Production & Assembly

With 43 presses and a large production capacity, Armor Metalstamp offers valuable client plant assist services, providing temporary production of metal stampings and blanks due to overflow at the client’s own facility. We can assist in low to high volume jobs and production runs. In the event of a client’s equipment breakdown, we can provide assistance with production needs that will reduce the client’s downtime and prevent from being shutdown.

Armor Metalstamp offers contract manufacturing services for custom metal stampings. Additional post-stamping services are available, including assembly, washing, machining and deburring. Welding and plating is available with our local supplier network

Our stamping presses range from 100 – 1500 tons with the ability to process parts up to 36” in length,and up to 72” in width. Part material thickness can range from 0.020” to .625” with maintaining tolerances of 0.002”.

Metal stamping south bend IN

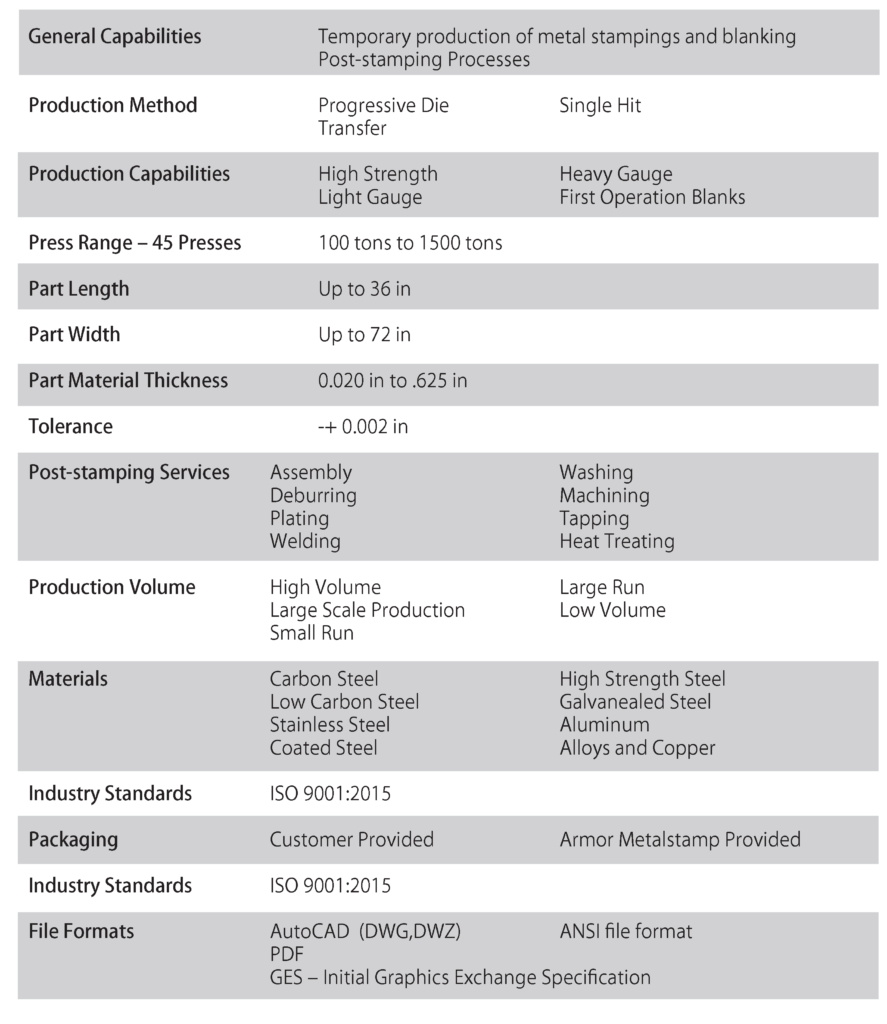

Armor metal stamp specifications
Metal stamping storage

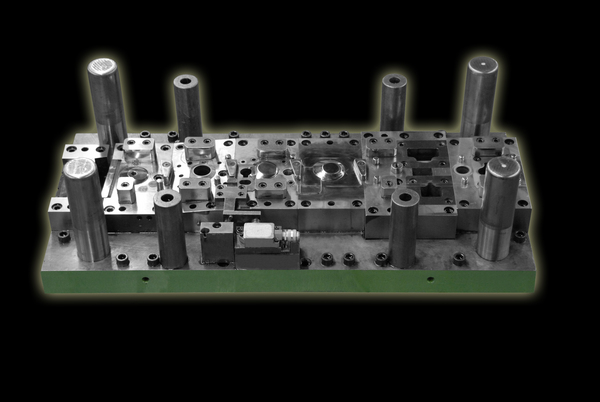

Tool / Die Design & Engineering – Tool Build

Armor Metalstamp offers custom tool and die services including design/engineering, build/fabrication, repair and maintenance. We specialize in trouble shooting customer’s existing tooling. We have experience with single operation and progressive dies, as well as deep draw and custom stamping dies. We are skilled at designing and building dies to blank, pierce, draw, extrude, form and notch materials such as steel, stainless steel, aluminum, brass and copper, as well as supply gages and fixtures. Armor Metalstamp works to precision tolerances for all of our tool and die projects and have a well-equipped tool room and supplier network to ensure quick turnaround.

Our stamping presses range from 100 – 1500 tons and are equiped to process parts measuring up to 36” in length and up to 72” in width. Part material thickness can range from 0.020” to .625” with maintaining tolerances of 0.002”.

Armor Metalstamp has 45 years of extensive experience in designing, building and repairing custom metal stamping dies for various industries with a wide range of applications.

Tool Tie Engineering Services Midwest

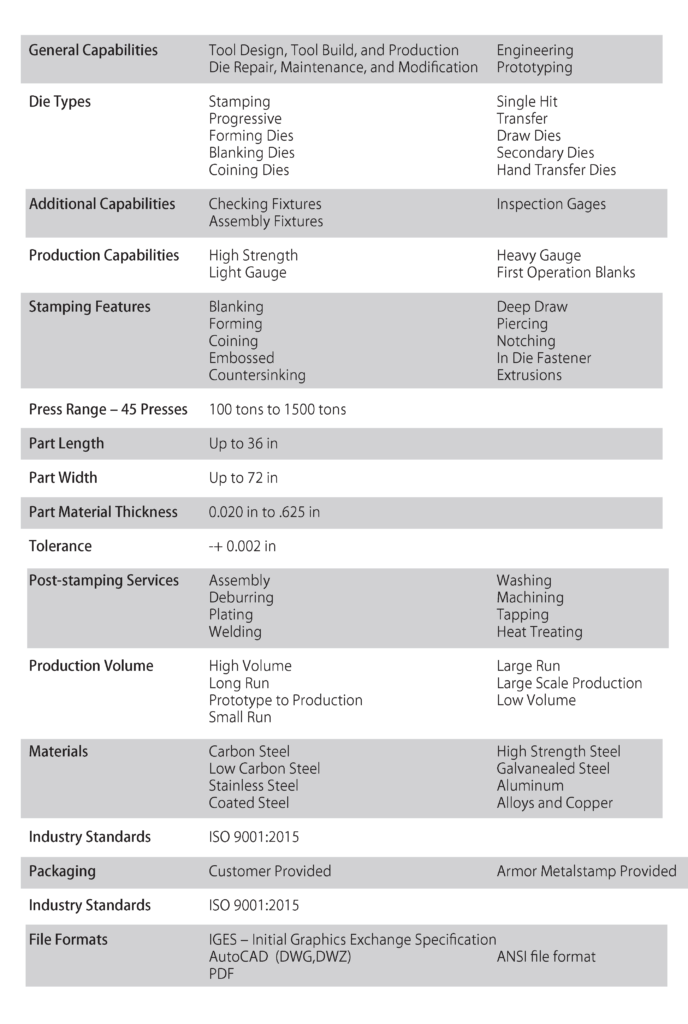

Tool Die Design Specifications Armor Metalstamp
metal stamping engineering
stamping die engineering
